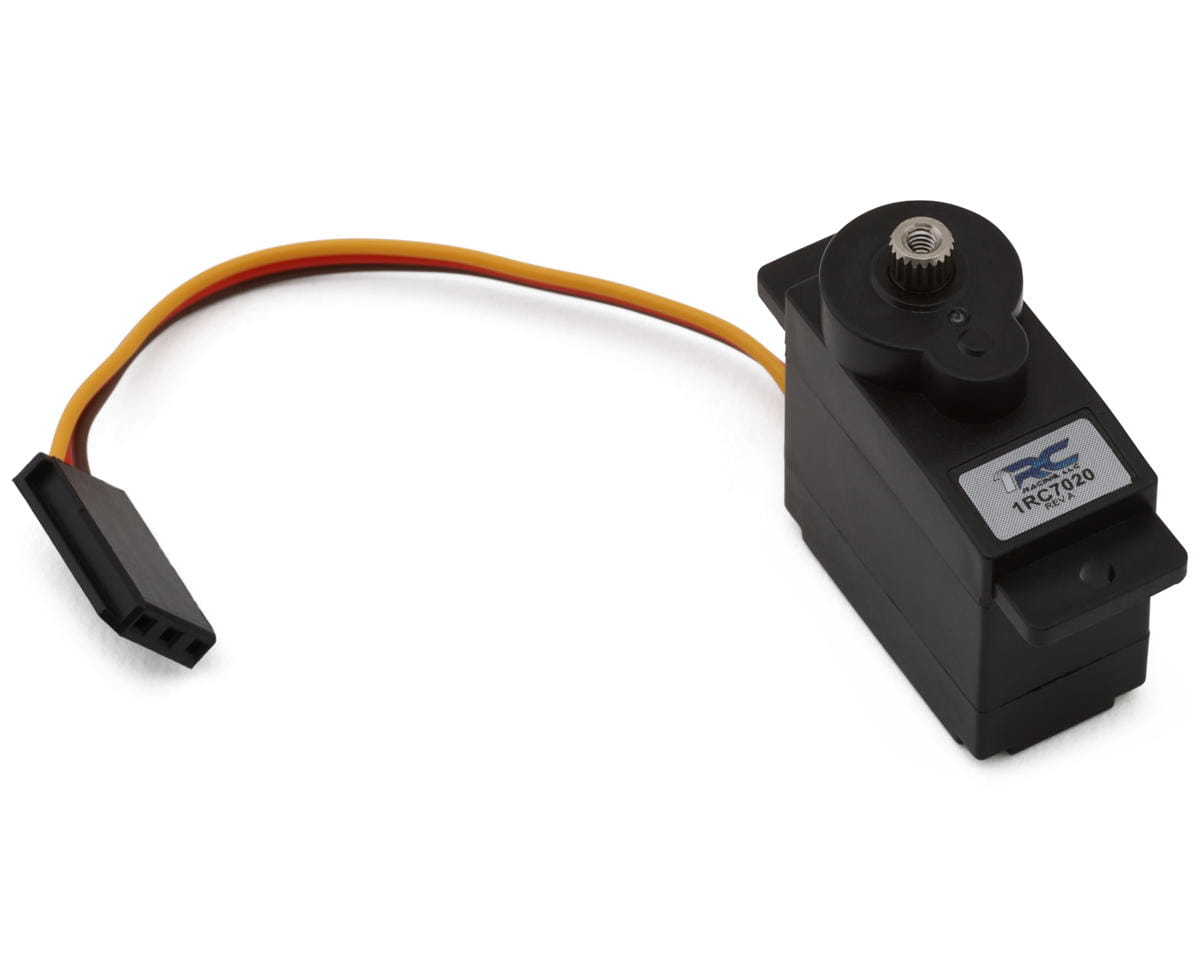

The 1RC Racing 1RC7020 is an 11-gram digital micro steering servo engineered for 1/18 scale oval racing platforms. It serves as a direct replacement/upgrade part (notably fitting platforms like the 1/18 Late Model and serving as an update to older legacy servos like the 1RC7018).
Key Features & Specifications
-
Gear Train: Metal gears for enhanced durability and stripping resistance under high-impact racing conditions.
-
Output Spline: 20-Tooth (20T) spline.
-
Dimensions: $23.2text{mm} times 12.0text{mm} times 25.5text{mm}$
-
Weight: 11g (0.39 oz)
-
Operating Speed:
-
0.12 sec/60° at 4.8V
-
0.10 sec/60° at 6.0V
-
-
Stall Torque:
-
$2.2text{ kg}cdottext{cm}$ ($30.5text{ oz}cdottext{in}$) at 4.8V
-
$2.5text{ kg}cdottext{cm}$ ($34.7text{ oz}cdottext{in}$) at 6.0V
-
-
Wiring: 180mm integrated lead wire.

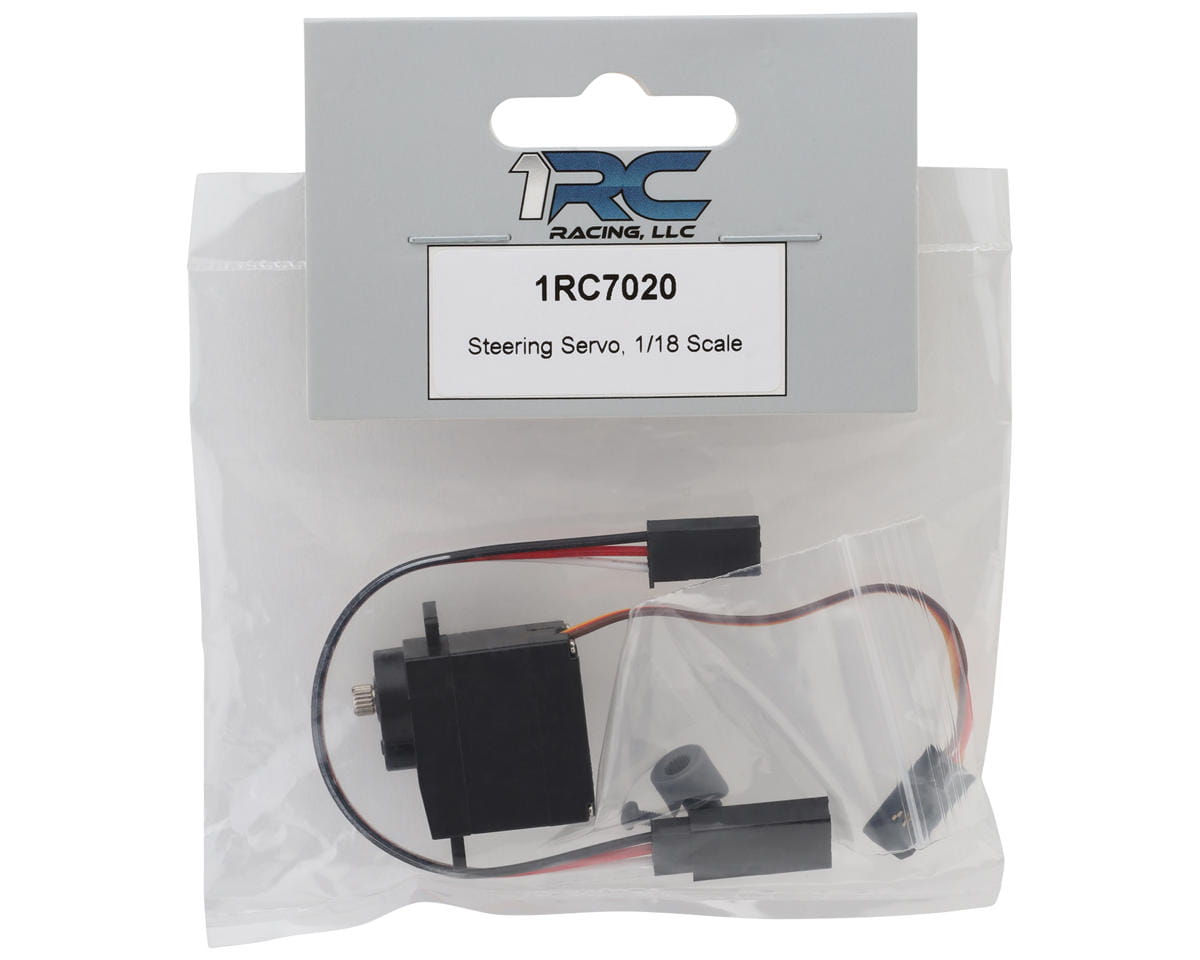

Kit Inclusions
-
(1) Digital Micro Steering Servo
-
(1) 100mm Extension Wire
-
(1) Servo Adapter
-
(1) Truss Head Mounting Screw ($2.0text{mm} times 12text{mm}$)
| Brand | 1RC Racing |
|---|
