Description

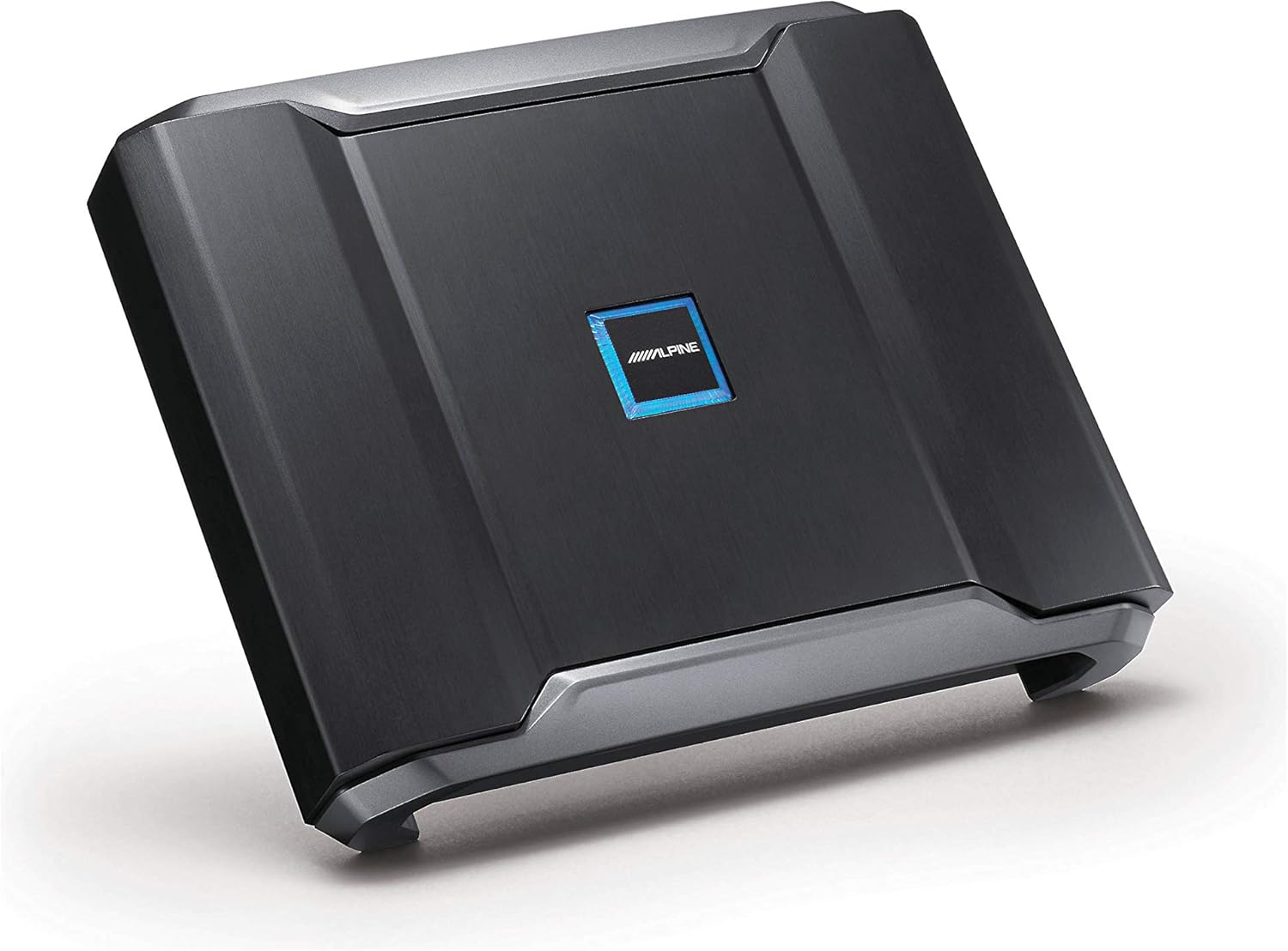

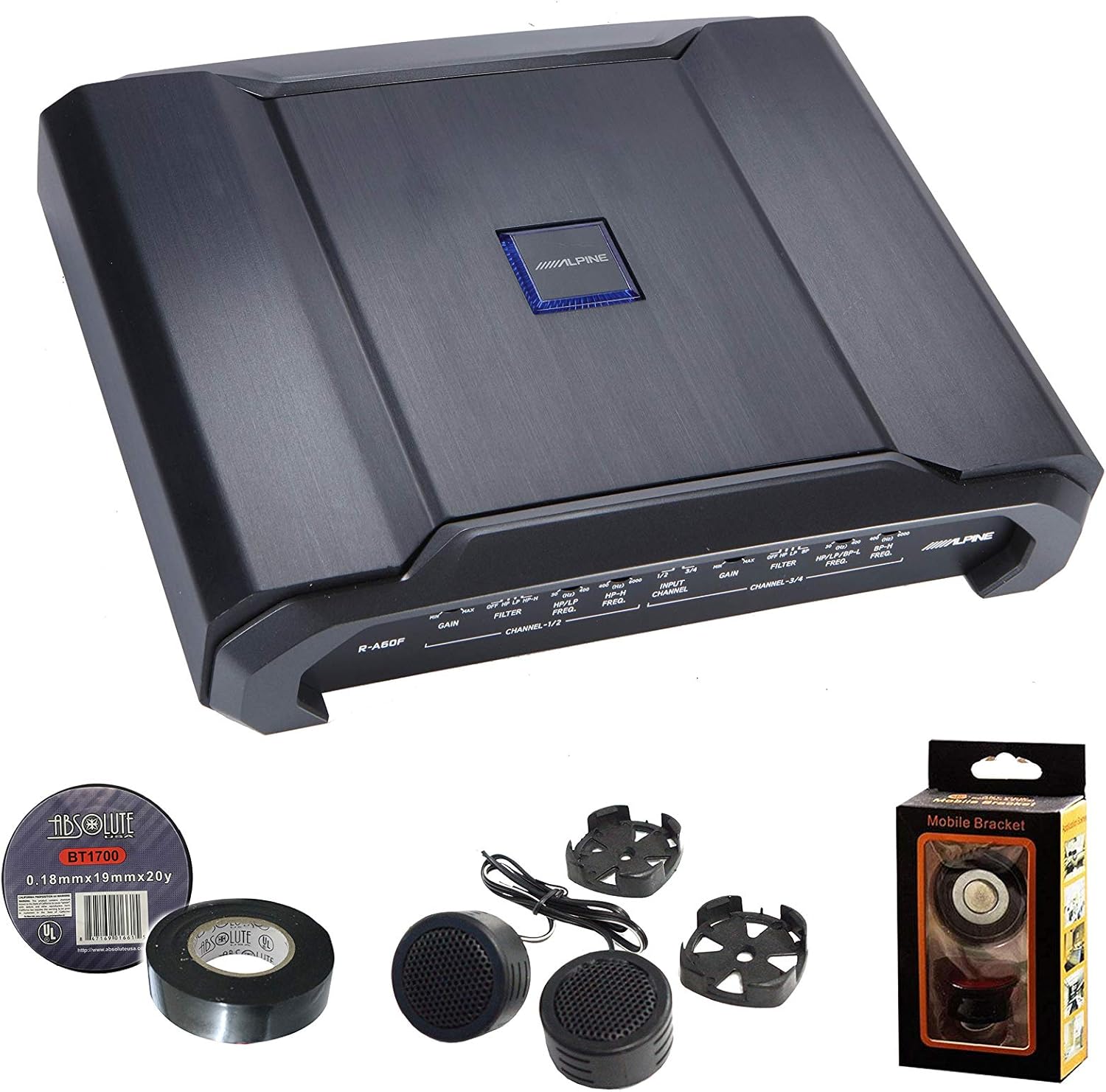

Alpine A60F R-Series 4-channel car amplifier 100 watts RMS x 4 Bundle
- 4-channel car amplifier
- 100 watts RMS x 4 at 4 ohms (150 watts RMS x 4 at 2 ohms)
- 300 watts RMS x 2 in bridged mode (4-ohm stable in bridged mode)
- CTA-2006 compliant
- Class-D amplifier design
- frequency response: (+0/-3 dB) 15 to 45,000 Hz (Hi-Res capable)
- variable high-pass, low-pass, and bandpass filters on front and rear channels
- optional RUX-KNOB.2 wired remote available for rear channels
- More Features:

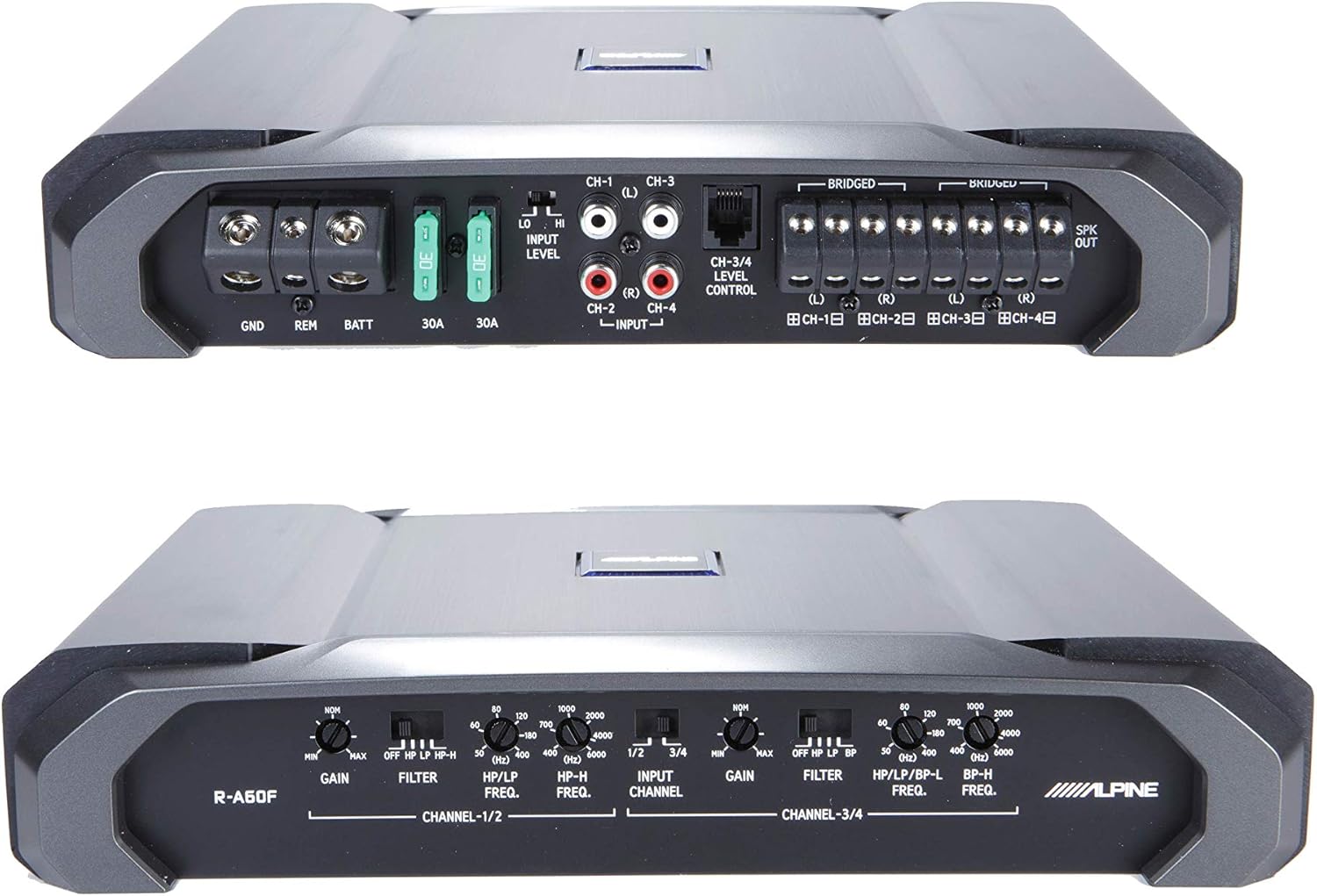

- preamp and speaker-level inputs
- speaker-level inputs require RCA adapter cables
- wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- fuse rating: 30A x 2
- dimensions: 10-3/4″W x 2-1/16″H x 10″D
- warranty: 1 year
- 4-Channel amplifier
- Two 30-amp ATO fuses (installed)
- 4 Mounting feet
- Four 3/4″ Screws
- Eight M2.5×5.5mm Machine screws
- 2mm Allen wrench
- 3mm Allen wrench
- Owner’s manual (English/ French/ Spanish)
- Alpine Verification Certificate
- Warranty information
- Power supply note
- Absolute TW-600 600 Watts MAX High Efficiency Dome Tweeter with Built-In Crossover (Pair)
- Absolute USA BT1700 General Use 0.18mm x 3/4-Inch x 20Yd Electrical Tape (Black)
- Universal 360 Degree Rotation and Swivel Mobile Bracket Holder
Additional information
| Brand | Alpine |
|---|---|
| Channels | 4 |
| Amplifier Class | Class D |
| RMS Power @ 4 Ohm | 100W x 4 |
| RMS Power @ 2 Ohm | 150W x 4 |
