Alpine S2-S10TW

Tweeter Mounting Options: The tweeters can be flush mounted using the supplied flush mount brackets and rings. Once mounted, the tweeters can swivel approximately 20° for optimum imaging. The tweeters can also be mounted in factory tweeter locations behind factory tweeter grilles using the supplied stealth mounting brackets. The stealth brackets have a multitude of tabs used for different mounting configurations. When not needed, the tabs are easily removed. The factory location measurements in the chart below are generally minimums, with some tabs removed. (The three mounting tabs in the tweeter housings are not symmetrical, so there is only one correct position to insert the tweeters.)

Product info:

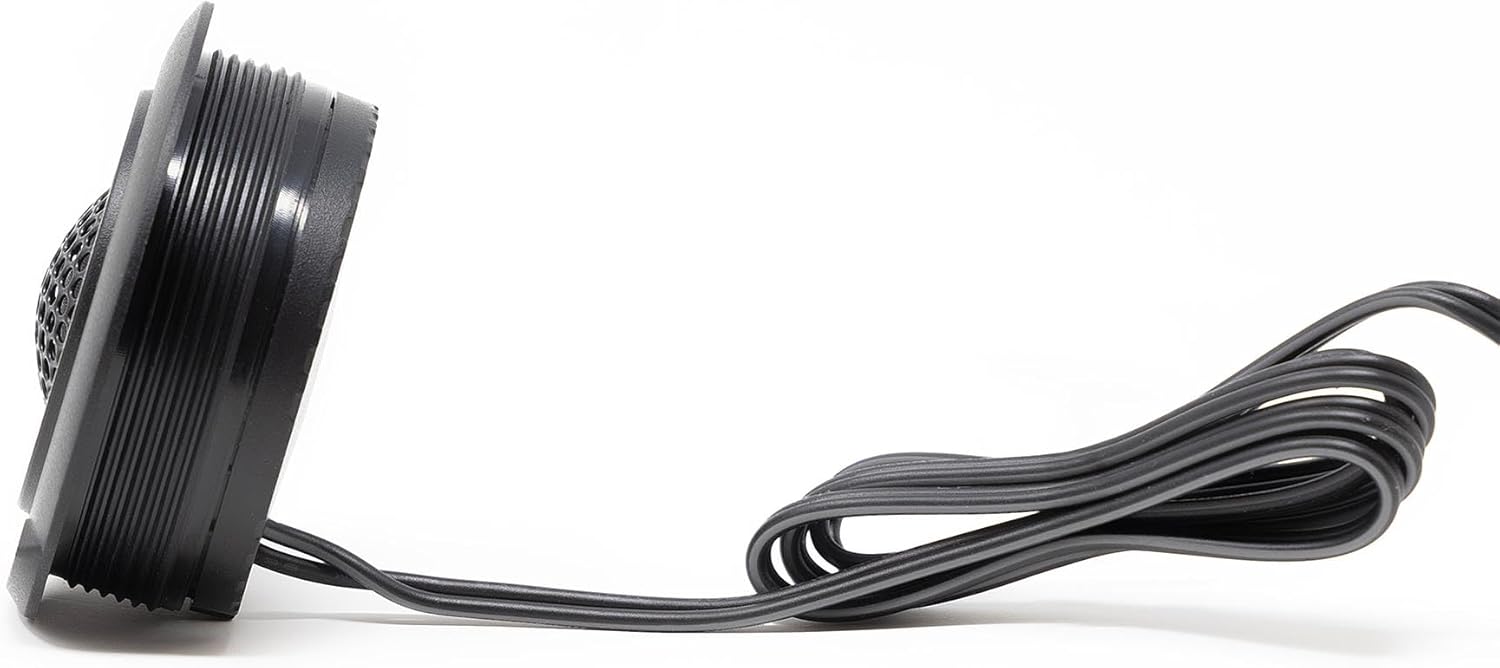

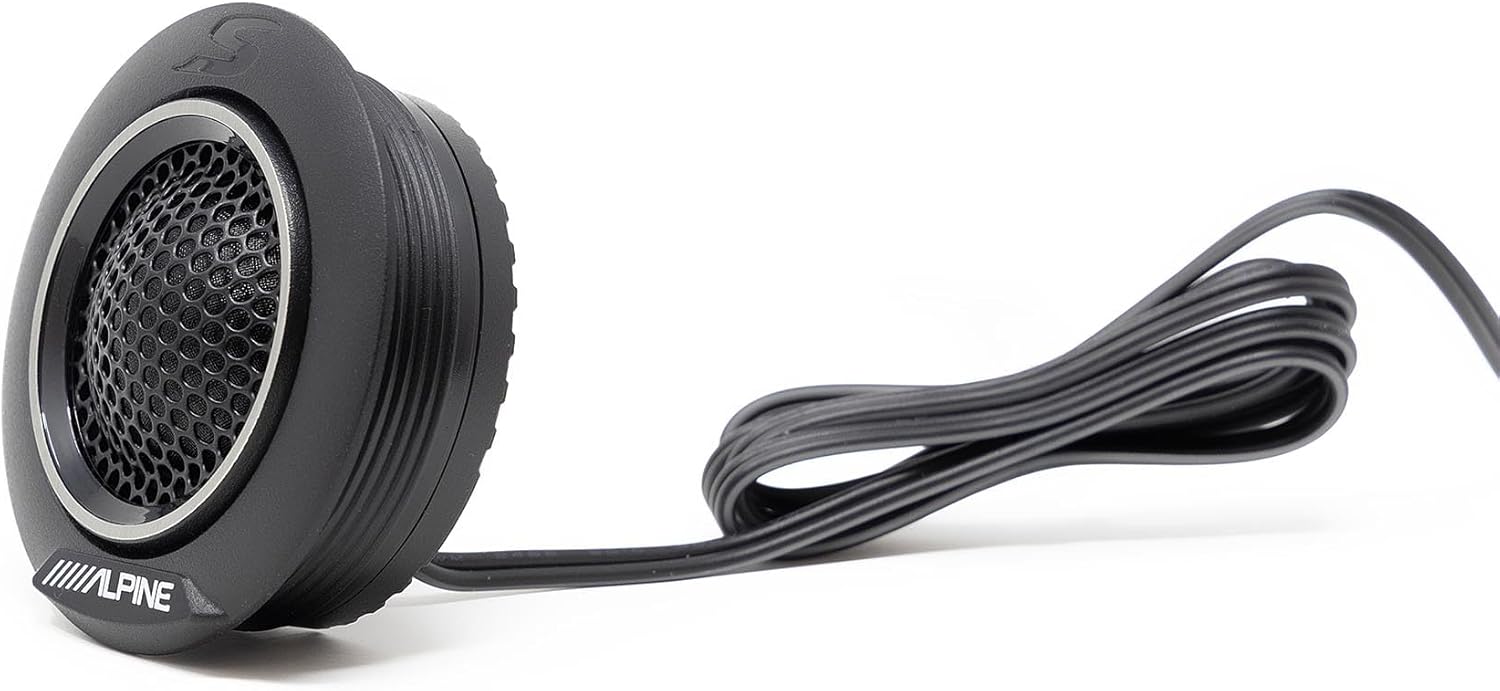

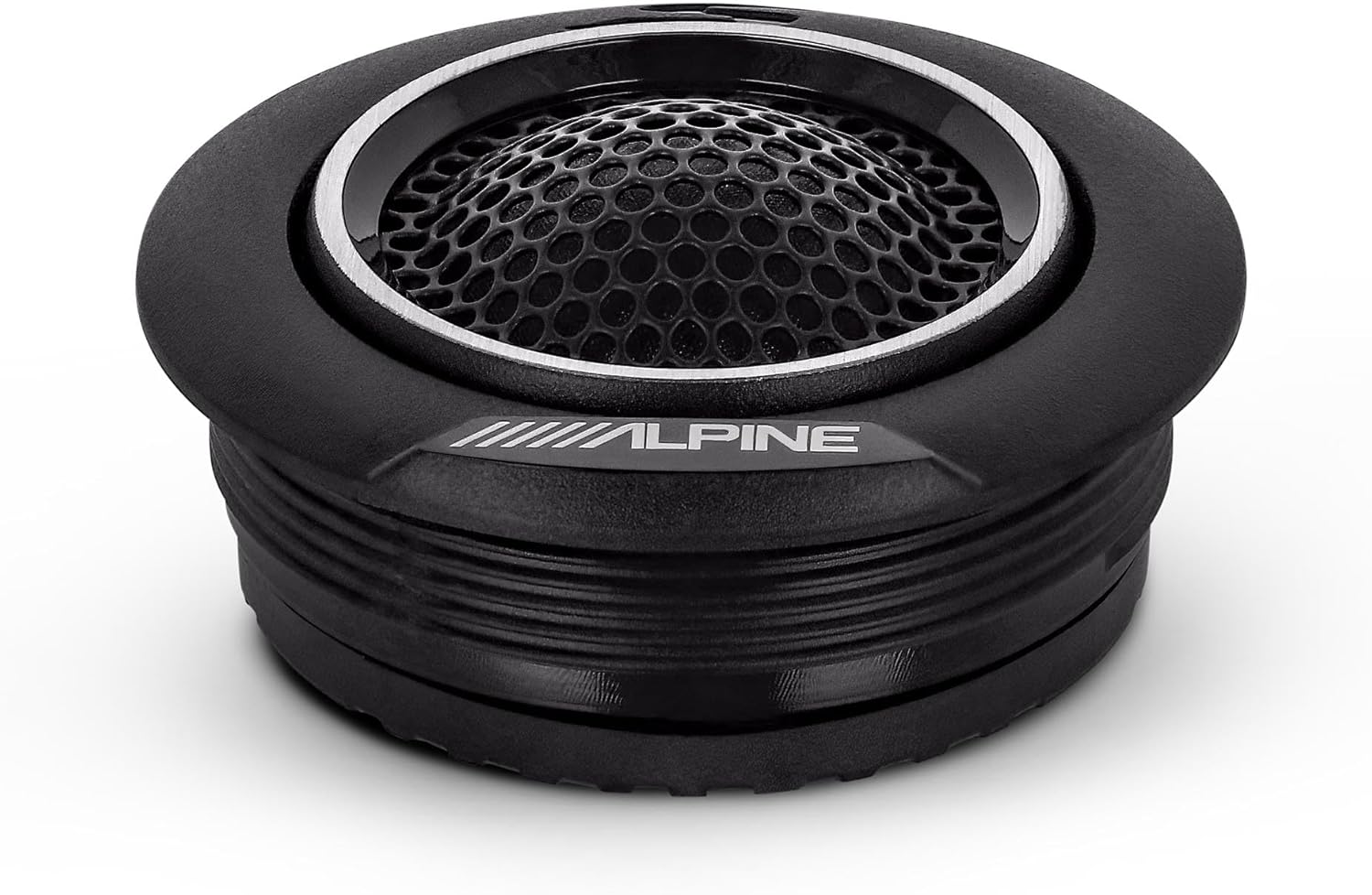

• 1″ cloth dome tweeters (pair)
• swivel flush-mount hardware included
• Hi-Res Audio Certified
• in-line passive crossovers
• handles up to 80 watts RMS (240 watts peak power)
• frequency response: 1,000-40,000 Hz
• impedance: 4 ohms
• sensitivity: 87 dB
• flush-mount depth: 3/4″
• cutout diameter: 2″
