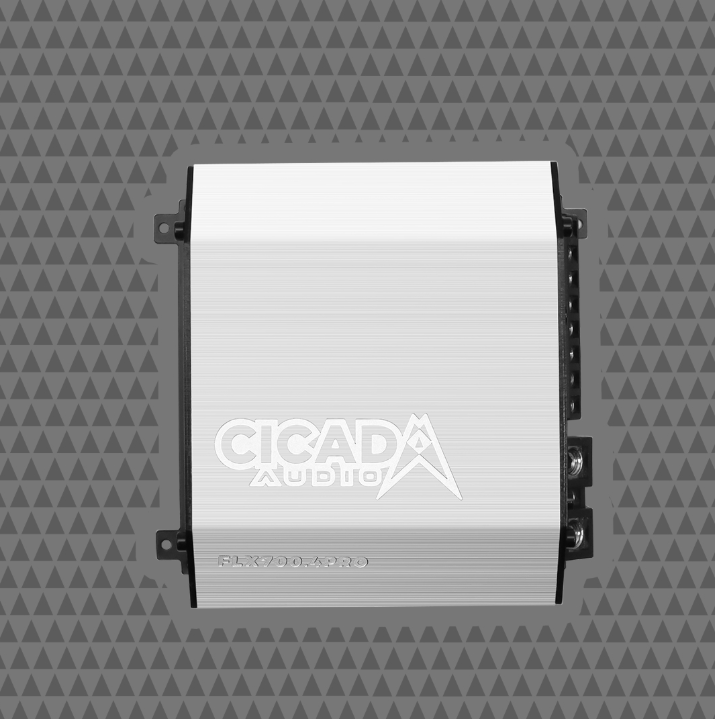

Cicada FLX700.4PRO

FEATURES

• Ultra-Compact Design
  Engineered to never compromise, delivering maximum power output in a small footprint.
• Built-In DSP Processor
  6-channel DSP (4 amplified + 2 pass-through) with:
  • Bluetooth® audio streaming
  • USB-C input port for PC tuning
• Mounting Options
  • Compatible with H-D® Road Glide® and Street Glide® amp racks

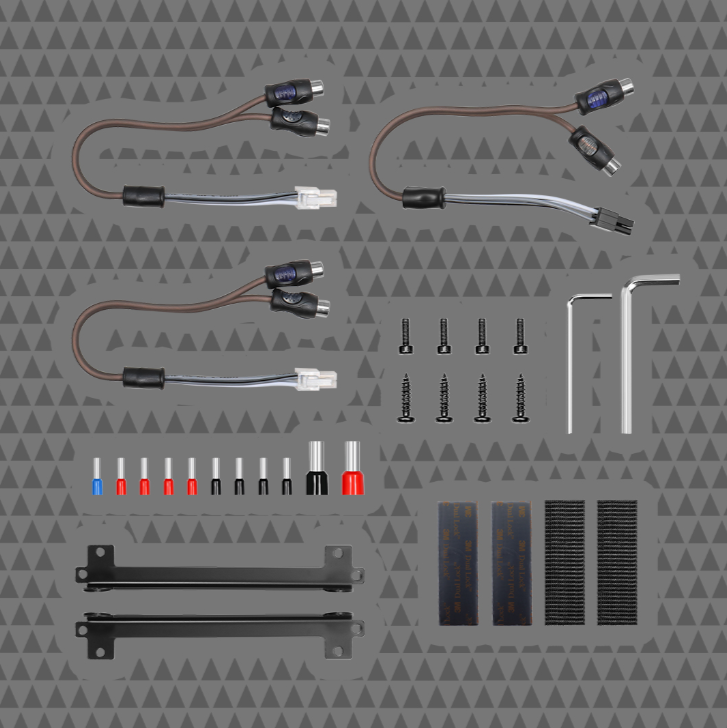

  • Includes multiple mounting brackets for flexible installation
• Advanced Class D IR® Chipset
  • Latest digital technology for efficient performance
  • Conformal coating for environmental protection
  • ICAD circuit for superior overload protection

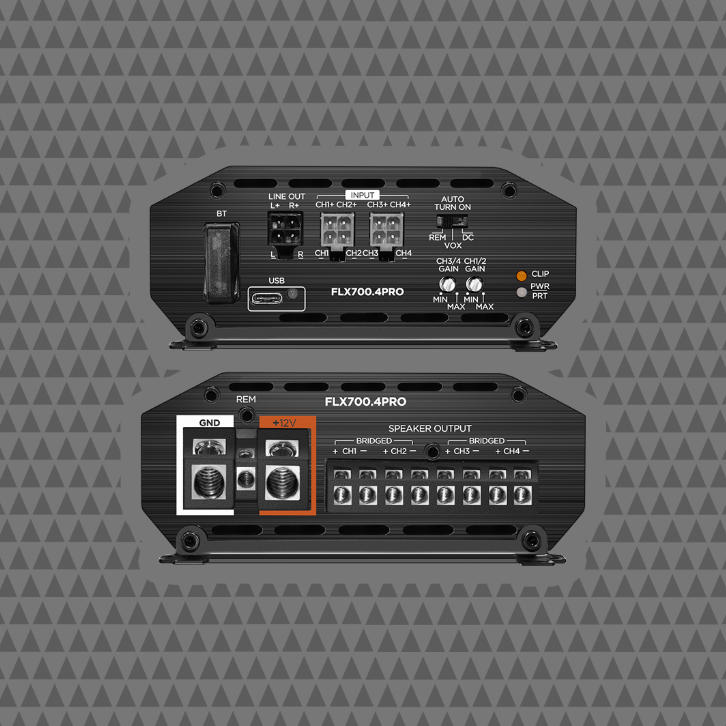

• Premium Connectivity
  • 4 AWG power and 12 AWG speaker busbar-style inputs/outputs
  • Molex® inputs for RCA or H-D® custom termination
  • Multi remote turn-on options: REM / DC / VOX
• User-Friendly Indicators & Controls
  • Clipping and status LED indicators
  • Fully encased in extruded aluminum heatsink
• Warranty
  • Backed by a two (2) year warranty

SPECIFICATIONS

• RMS Power Output (14.4V)
  • 4 Channel Stereo:
    • 120W x 4 @ 4 Ω
    • 175W x 4 @ 2 Ω
  • 2 Channel Bridged Mode:
    • 350W x 2 @ 4 Ω
• Performance Metrics
  • Signal-to-Noise Ratio: 91dB (A-weighted, 20 Hz – 20 kHz)
  • Operating Voltage: 9V – 16V
  • Current Draw (Music): 50A
  • Current Draw (Max): 80A
  • Recommended Fuse: 50A
  • Total Efficiency: 80%
  • Frequency Response: 20 Hz – 20 kHz ±3 dB
  • Damping Factor: 200
  • THD + N (10% Rated Power): 0.1% @ 2 Ω per channel
• Gain Control (External)
  • Gain Range: 0.2V – 12V
  • Turn-On Configuration: REM / DC / VOX
• Dimensions
  • With Mounting Brackets: 5.3 x 4.9 x 2.0 in (134 x 125 x 51 mm)
  • Chassis Only: 4.1 x 4.9 x 2.0 in (104 x 125 x 51 mm)
