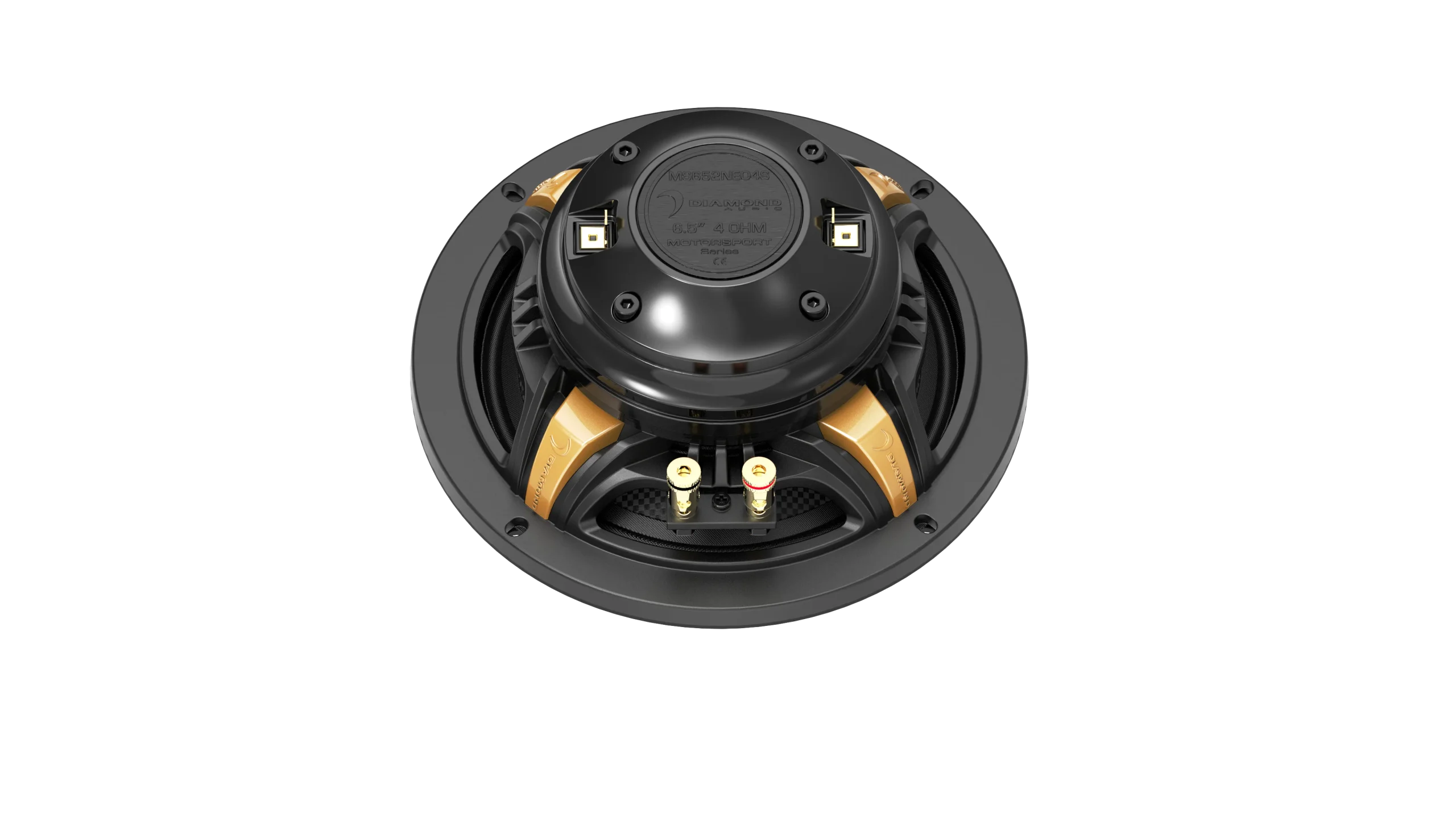

Diamond MS652NEO4S

Every element of these drivers is crafted to the highest standards, from the premium voice coils and advanced motor structures to the rock-solid basket design, flexible bi-amp capabilities, and waterproof components. These speakers don’t just play music — they transform your listening experience into something extraordinary. If you’ve heard our MS NEO drivers before, get ready for a whole new level of sonic brilliance.

Don’t settle for ordinary sound. Choose Diamond Audio’s NEO Series Coaxial Drivers — because your music deserves the best.

Specifications

SPEAKER SIZE – 6.5″
SPEAKER TYPE – HORN LOADED CO AXIAL
BI-AMPABLE YES
OHMS (PER COIL) – 2
NUMBER OF VOICE COILS – DUAL
FIELD SERVICABLE VOICE COIL – YES
CONE MATERIAL – CARBON FIBER
DIAPHRAGM MATERIAL – (PEN) POLYETHYLENE NAPHTHALATE
BASKET MATERIAL – CAST ALUMINIUM
MAGNET TYPE – NEODYMIUM
SURROUND MATERIAL – RUBBER
WATER RESISTANCE –
VOICE COIL DIAMETER – INCH (MM) – 2″
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 93
RE (Ω) [SERIES]: 3.2
QMS: 10.357
QES: 0.67
QTS: 0.629
FS (HZ): 151
VAS (L): 2.756
CMS (MM/N): 0.094
MMS (G): 11.728
SD (M2): 143.14
BL (T*M): 7.289
XMAX (MM): 1.2
POWER HANDLING RMS: 200
POWER HANDLING MAX: 400
MOUNTING DEPTH: IN.(MM):2.74″” (69.50MM)
CUT OUT DIAMETER IN.(MM):5.63″” (143MM)
OVER ALL DIAMETER IN.(MM):6.29″” (159.68MM)
OVER ALL HEIGHT IN.(MM):3.38″” (85.9MM)
