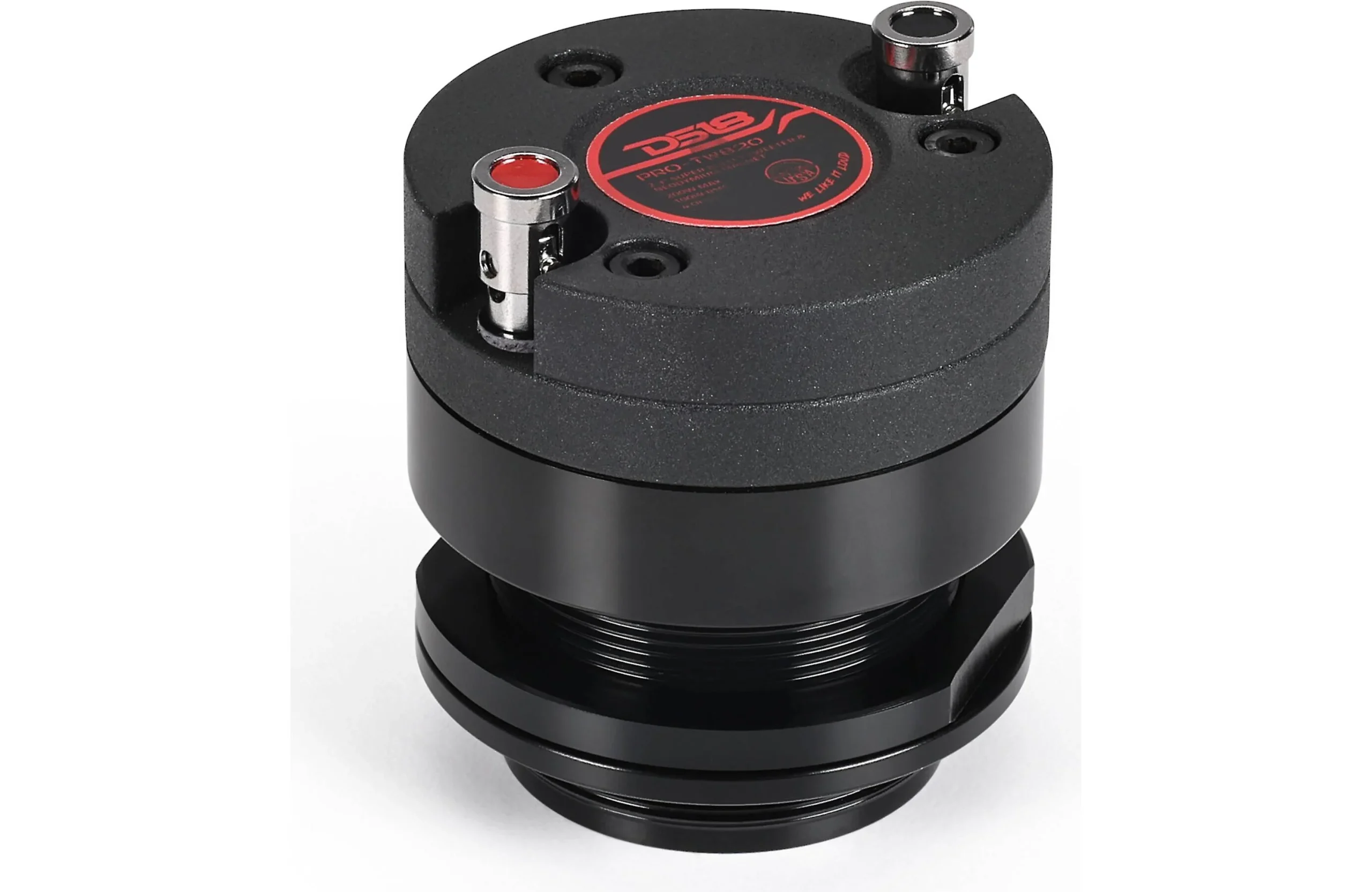

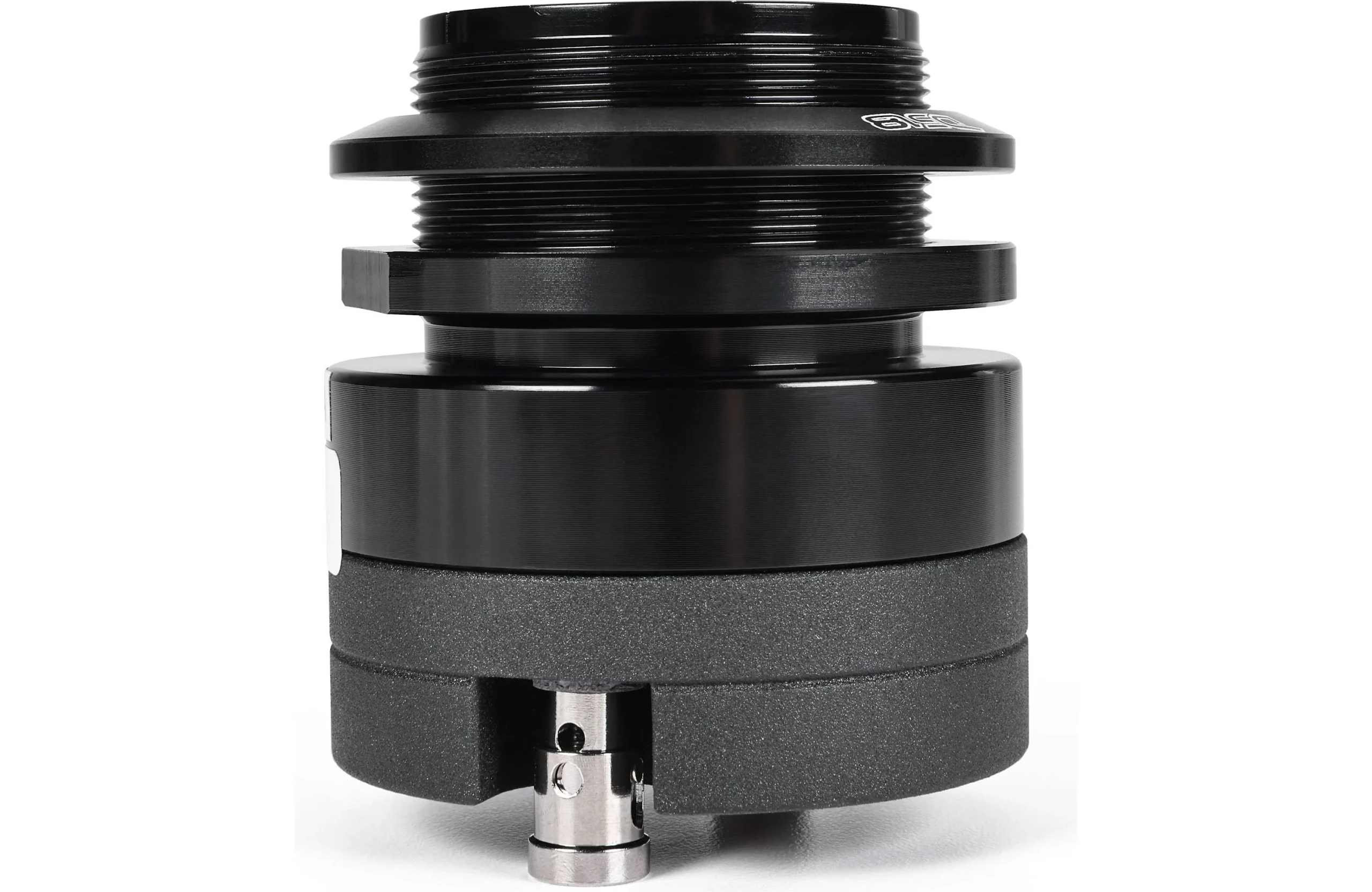

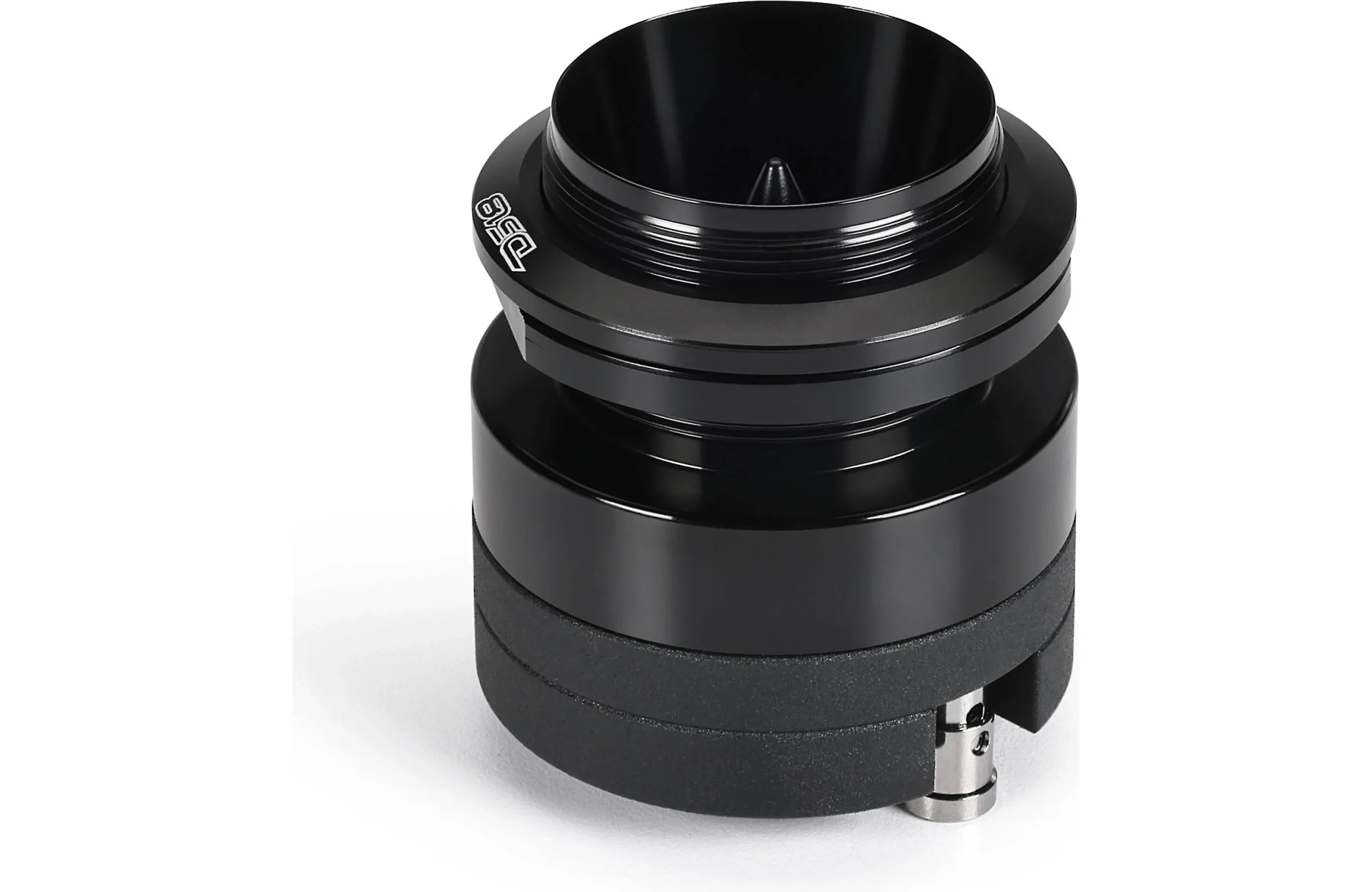

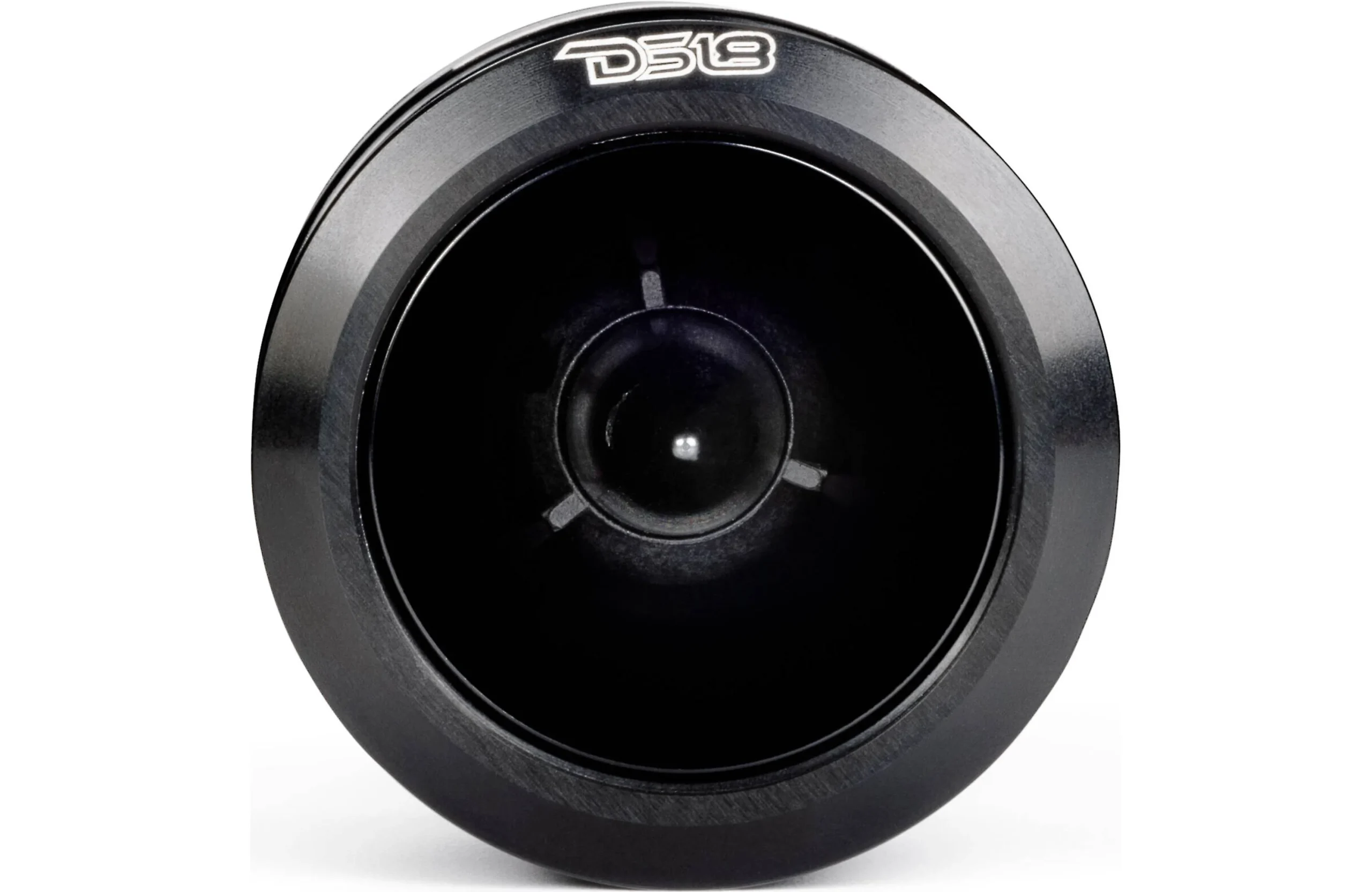

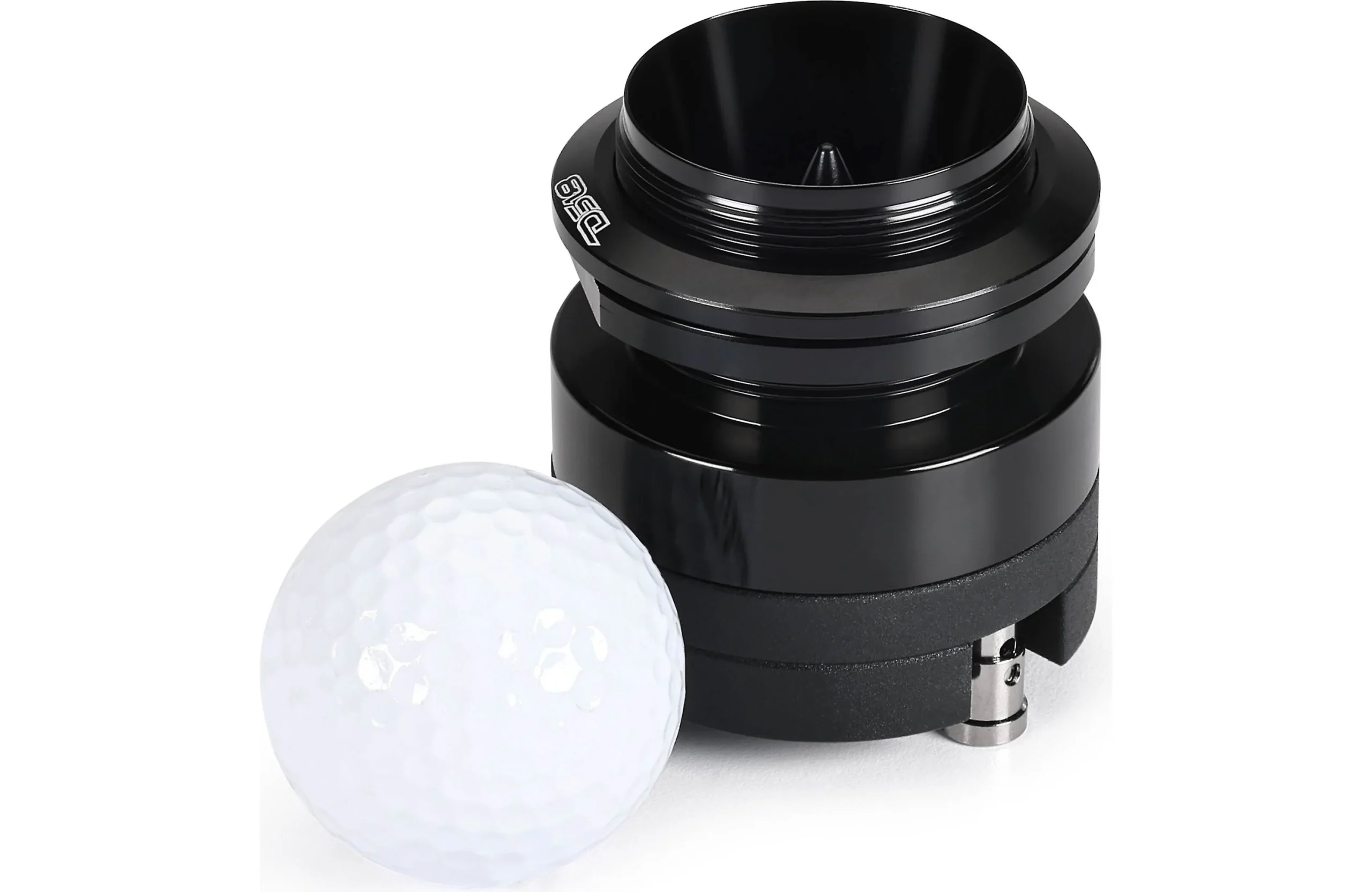

Ds18 PROTW820VC

• single 2.3″ high-compression super bullet tweeter
• adjustable flush mount housing
• repairable titanium diaphragm
• aluminum basket
• 1″ voice coil with neodymium magnet
• built-in grille
• includes high-pass filter (capacitor)

Specs:

• adjustable mounting depth: 1.9″-2.375″
• cutout diameter: 1.71″
• impedance: 4 ohms
• sensitivity: 105 dB
• power handling: 100 watts RMS (200 watts peak)
• frequency response: 2,000-20,000 Hz
• recommended high-pass filter: 3000 Hz

DS18’s PRO-TW820 is a 2.3” high-compression super bullet tweeter engineered for show-stopping pro audio setups.

Clean, Aggressive Highs
With a 1″ aluminum voice coil and neodymium magnet, the PRO-TW820 pumps out up to 50W AES Power, 100W Program Power, and 200W peak power at 105dB sensitivity, delivering razor-sharp highs with minimal distortion.

Neodymium Motor + CNC Aluminum Bullet
Neodymium gives you stronger magnetic force with less weight, while the precision CNC aluminum bullet projects sound with pinpoint accuracy. Every high note hits fast, clean, and loud.

Custom Mounting
Mounting is easy thanks to the updated aluminum mounting ring with pre-drilled holes, plus 1 thin and 1 thick rubber gasket, giving you total flexibility for flush or elevated installs on doors, dashes, or pods. Mounting depth is adjustable from 1.65” to 2.26”, making it perfect for custom builds.

Easy to Service
Push them hard—these tweeters are made to take it. And if you need to swap a diaphragm or ring? You can break it down and rebuild in under 60 seconds with basic tools.

Wide Range
Plays from 700Hz–20kHz with a recommended high-pass crossover at 3kHz. Includes a 3.3μf/50V bass blocker for added protection out of the box.
