Ds18 PROZT6
MSRP: Log in to view prices
Log in to see Dealer Price

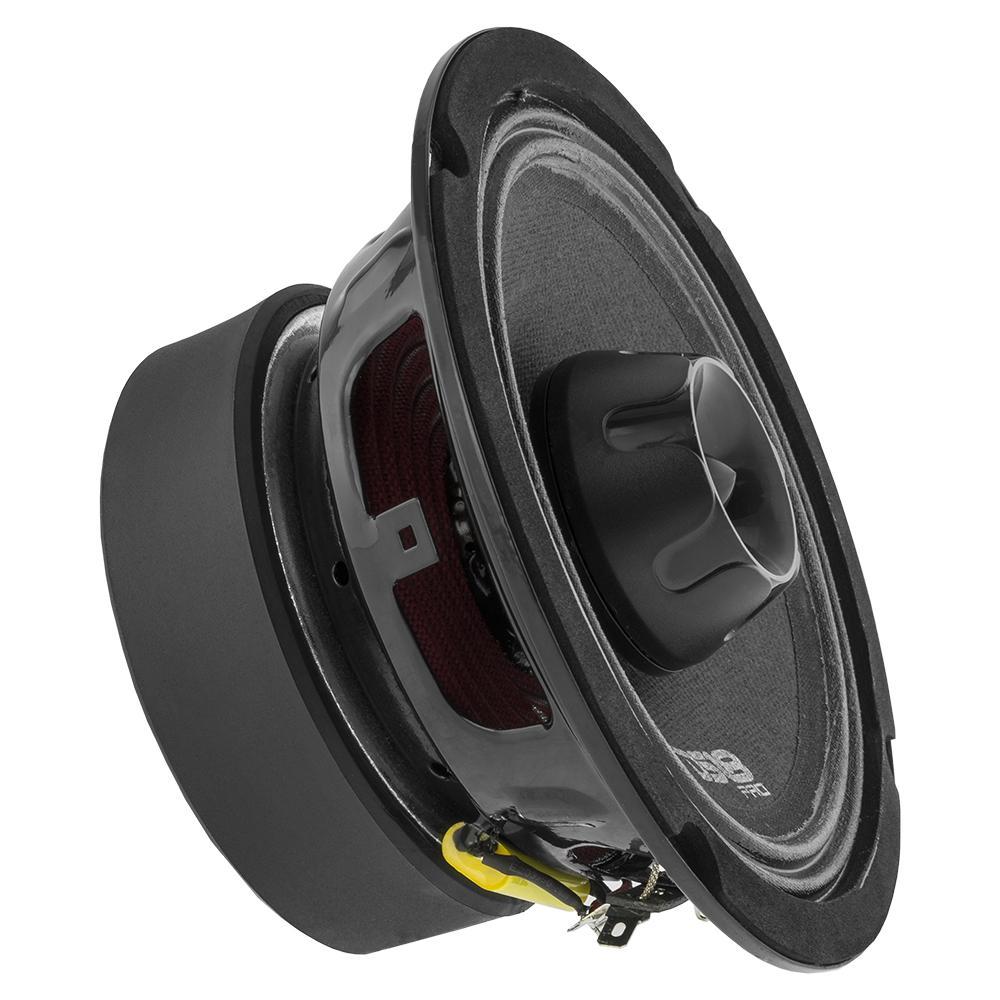

PRO 6″ Midrange Loudspeaker With Bullet Tweeter 450 Watts 4-ohm With Grill
Description
DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the?voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build.
| Nominal Diameter: | 6.5″ (1651.1mm) |
| Nominal Impedance: | 4 ohms |
| RMS Power Handing: | 225 Watts |
| MAX Power Handing: | 450 Watts |
| Sensitivity (1w/1m): | 96dB |
| Frequnecy Response: | 65Hz – 22KHz |
| Recommended Hi Pass Crossover | 120Hz |
| Midrange | |
| Voice Coil Diameter: | 1.5″ (38.1mm) |
| Voice Coil Former Material: | Kapton |
| Winding Material: | CCAW |
| Basket Material: | Steel |
| Magnet Weight: | 27 oz |
| Tweeter | |
| Voice Coil Diameter: | 1″ |
| Voice Coil Material: | Kapton |
| Winding Material: | CCAW |
| Diaphragm Material: | Aluminum Alloy |
| Magnet Weight: | 0.44 oz |
| Magnet Material: | Neodymium |
| Thiele & Small Parameters | |
| Equivalent Volume / Vas | 2.917 LTR |
| Excursion / Xmax | 1.6mm |
| Free Air Resonance / Fs | 150Hz |
| Mechanical Factor / Qms | 3.906 |
| Electrical Factor / Qes | 0.747 |
| Total Factor / Qts | 0.701 |
| DC Resistance / Re | 3.2 |
| Measurements | |
| Overall Diameter: | 178mm (7″) |
| Front Mount Baffle Cutout: | 144mm (5.67″) |
| Mounting Depth: | 77mm (3.03″) |
| Overall Depth: | 97mm (3.81) |
Additional information
| Weight | 1 lbs |
|---|---|
| Brand | DS18 |
