VIPER D9817V

The Viper D9817V is an ultra-compact 2-way 1-button LED transmitter replacement and expansion kit engineered primarily for Directed’s digital platforms (DS3/DS3+, DS4/DS4+, 4X10/5X10) and hybrid remote start/security control modules.

Overview

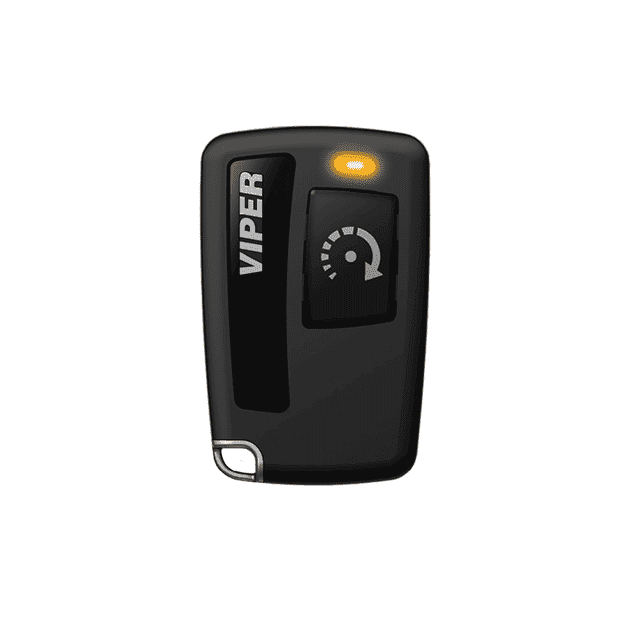

The Viper D9817V kit is designed for users who prefer simplified, minimalist vehicle control without navigating a multi-button layout. The primary 7817V remote features a single multi-function button paired with a high-visibility LED confirmation indicator that flashes and beeps to confirm command execution (such as engine starting or lock/unlock toggles).

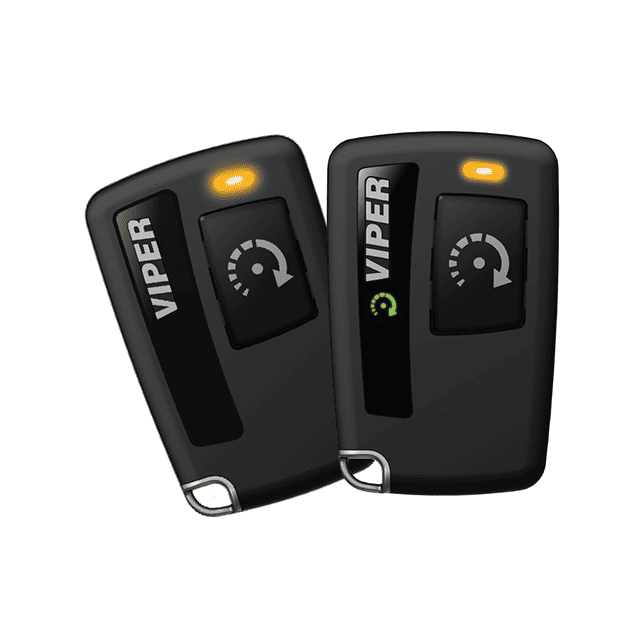

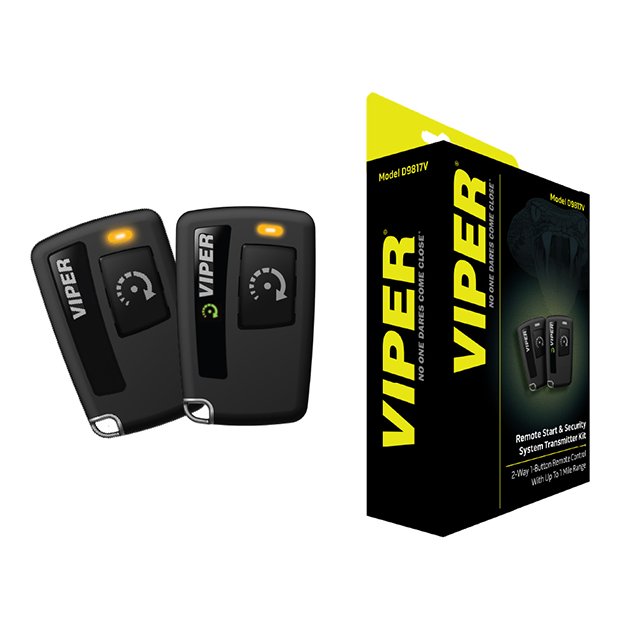

Operating on a 900 MHz SST (Spread Spectrum Technology) architecture, the system provides long-range performance of up to 1 Mile (approx. 5,280 feet / 1.6 km) through physical obstructions and dense RF environments. The kit includes one primary 2-way 1-button LED remote (7817V), one companion 1-way 1-button backup remote (7117V), the 6826T 900 MHz Control Center antenna module, and an antenna interconnect cable.

Key Features

• Minimalist 1-Button User Interface: Controls remote start, lock, unlock, and runtime extension functions sequentially through single and multiple button presses.

• 2-Way LED & Audible Confirmation: Integrated multi-color LED and beep tones verify when the vehicle successfully receives and executes commands.

• Spread Spectrum Technology (SST): 900 MHz digital frequency-hopping protocol provides maximum range stability and signal penetration.

• Ultra-Compact Key Fob Design: Extremely small footprint makes it one of Viper’s most portable 2-way remotes, ideal for carrying on a light key ring.

• Digital System Optimization: Tailored for seamless addition to Direct-to-Data (D2D) and digital brain architectures like the Viper DS4 platform.

Technical Specifications

Functional Operation (1-Button Logic)

Because the 7817V remote features only a single button, specific commands are triggered by pressing the button in distinct patterns:

• Remote Start / Stop: Press the button once (or twice, depending on programming) to initiate remote engine start. Press again while running to shut down the engine.

• Unlock / Disarm: Press and hold the button for 1.5 to 3 seconds while the remote start is active or the vehicle is locked.

• Lock / Arm: Press the button once while the engine is off to lock the doors and arm the system.

System Compatibility

The D9817V kit is engineered as an RF addition or replacement kit across modern Directed digital modules:

• Directed Digital Platforms: DS3, DS3+, DS4, DS4+, DS4V, DS4VP

• Directed Digital Systems: 4X10, 5X10

• Viper Systems: Compatible with 900 MHz SST digital control brains and hybrid systems

• Clifford Digital Platforms: D9817X, Clifford DS4/DS3 variants

• Python Digital Platforms: D9817P, Python DS4/DS3 variants
