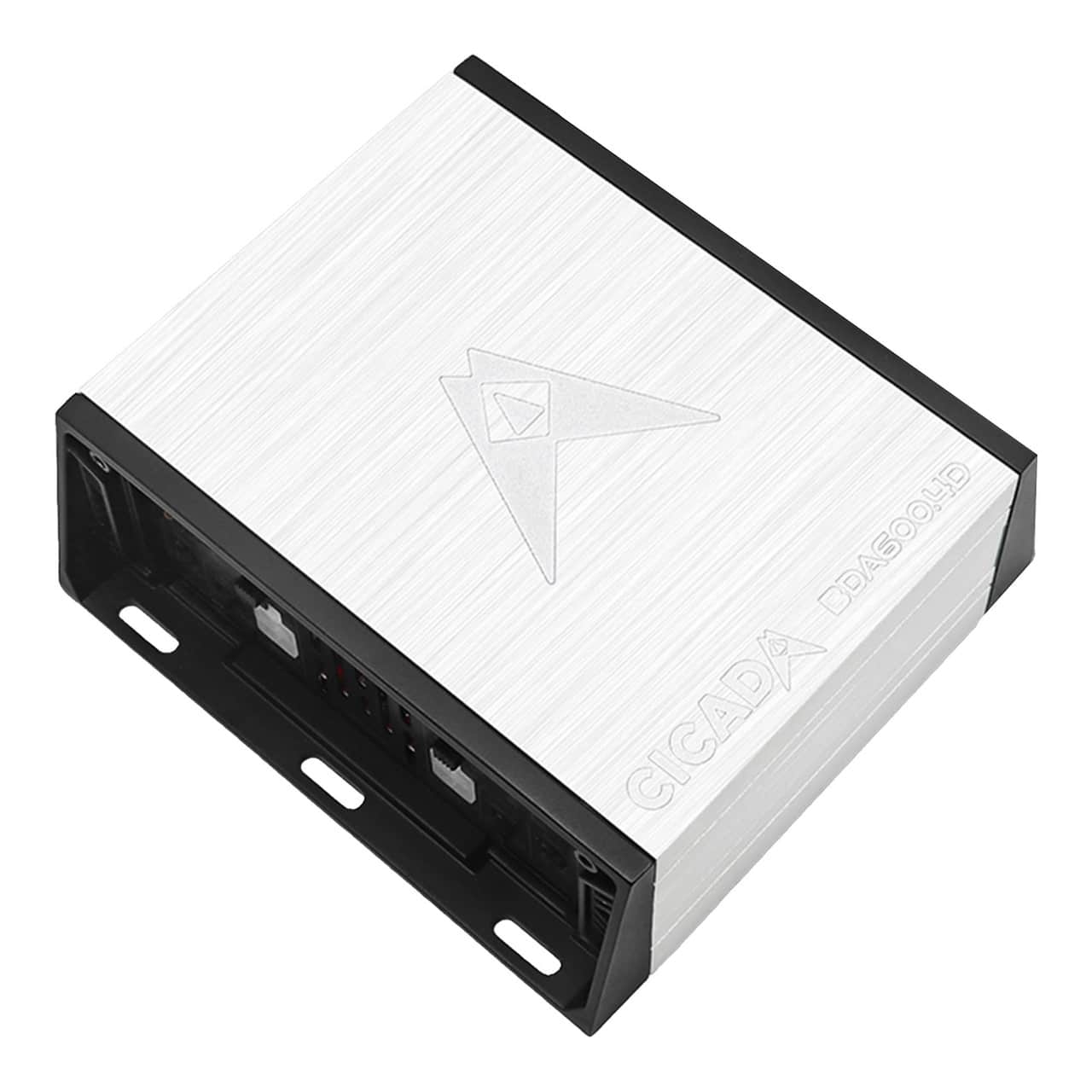

4 CHANNEL POWER AMPLIFIER

• 4 X 100 WRMS into 4 ohms @ 12.5 Vdc
• 4 X 118 WRMS into 4 ohms @ 14.4 Vdc
• 4 X 130 WRMS into 2 ohms @ 12.5 Vdc
• 4 X 150 WRMS into 2 ohms @ 14.4 Vdc

BRIDGED MONO – 2 CHANNEL

• 2 X 261 WRMS into 4 ohms @ 12.5 Vdc
• 2 X 302 WRMS into 4 ohms @ 14.4 Vdc
• Frequency response – 20-20,000 +/- 3dB THD < 0.5%
• Operating Voltage: 8V – 16V
• Current Draw (Music): 60 A
• Current Draw (Max): 116 A
• Recommended Fuse (Music): 120 A
• Total Efficiency: 79%
• Damping Factor: 200
• SNR: 91dB
• Crossover LPF/FULL/HPF: 30 TO 300Hz
• Slope:12dB per octave
• Gain: 0.2V – 12 Vac
• Turn-On Configuration: REM/DC
• THD + N (10% Rated Power): 0.1%
• Product Dimensions (Inches / Millimeters): 5.08 x 5.37 x 2.1 in / 129 x 136.4 x 54 mm
