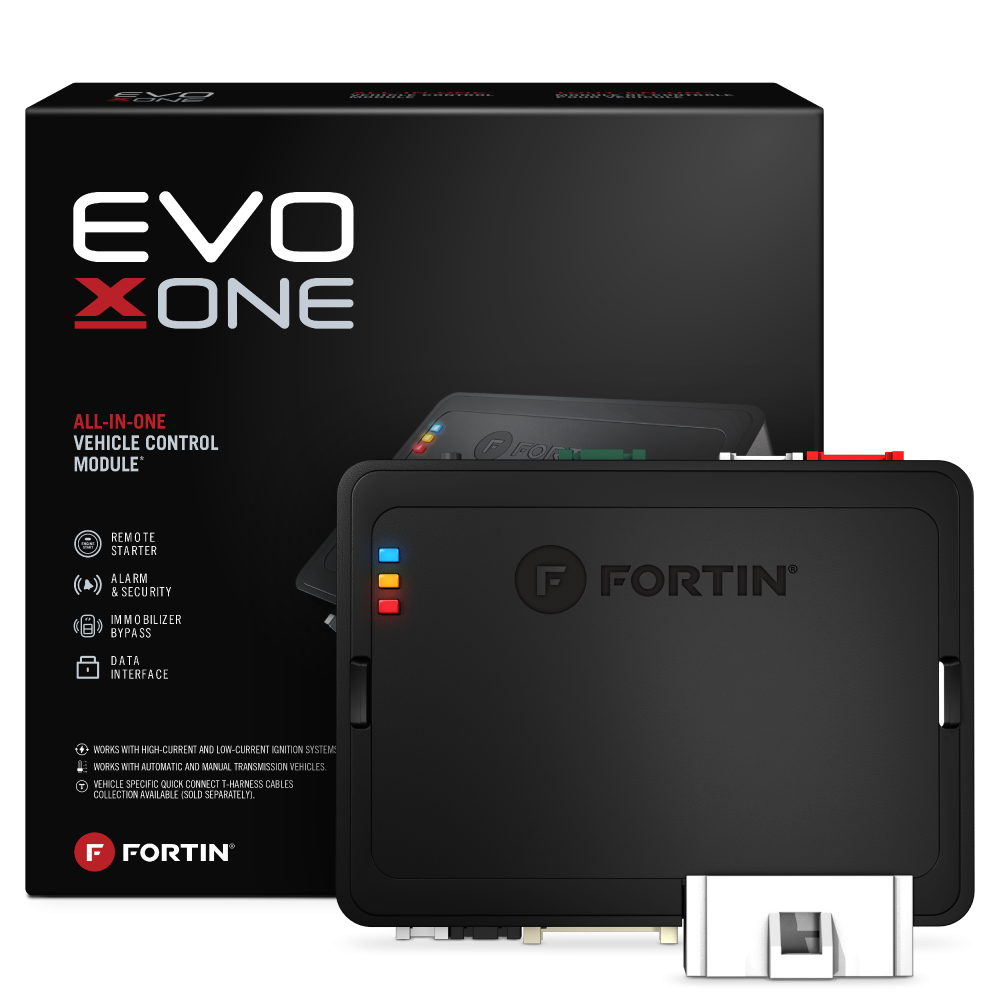

Fortin EVO-X-ONE

The EVO-X-ONE module is the ultimate and smallest ALL-IN-ONE HIGH POWER key bypass, door control data interface, alarm & remote starter module. Compatible with all T-harnesses, the EVO-X-ONE redefines the industry standard. This product raises the standard of installation to a whole new level.

It uses a multi-microcontroller communication architecture with more than 10 independent communication ports that now redefine the term Remote Starter. The EVO-X-ONE is an impressive technological evolution at an affordable price.

5x High-Current Relays
3x CAN Network Controllers
3x General-Purpose Data Controllers (J1850, Class 2, Encoded Keys, etc.)
1x Internal Relay (DPDT)
1x 0-12VDC Analog Circuit Controller with 20mV Accuracy (Passlock, MUX)
10x Data I/O Controller
1x Dual Zone Input Shock Sensor
2x RS232 Datalink Ports
3x Internal LEDs for Easy Programming and Diagnostics
1x Parts Bag Attached to the Module
1x 2-Way Datalink Communication Port for Data Communication with Compatible Remote Starters and Security Systems
1x 20-Pin Harness for Analog Connections with Remote Starters and Security Systems Not Equipped with a Datalink Port. The algorithm automatically detects the vehicle during programming. Allows for automatic module adjustment.
