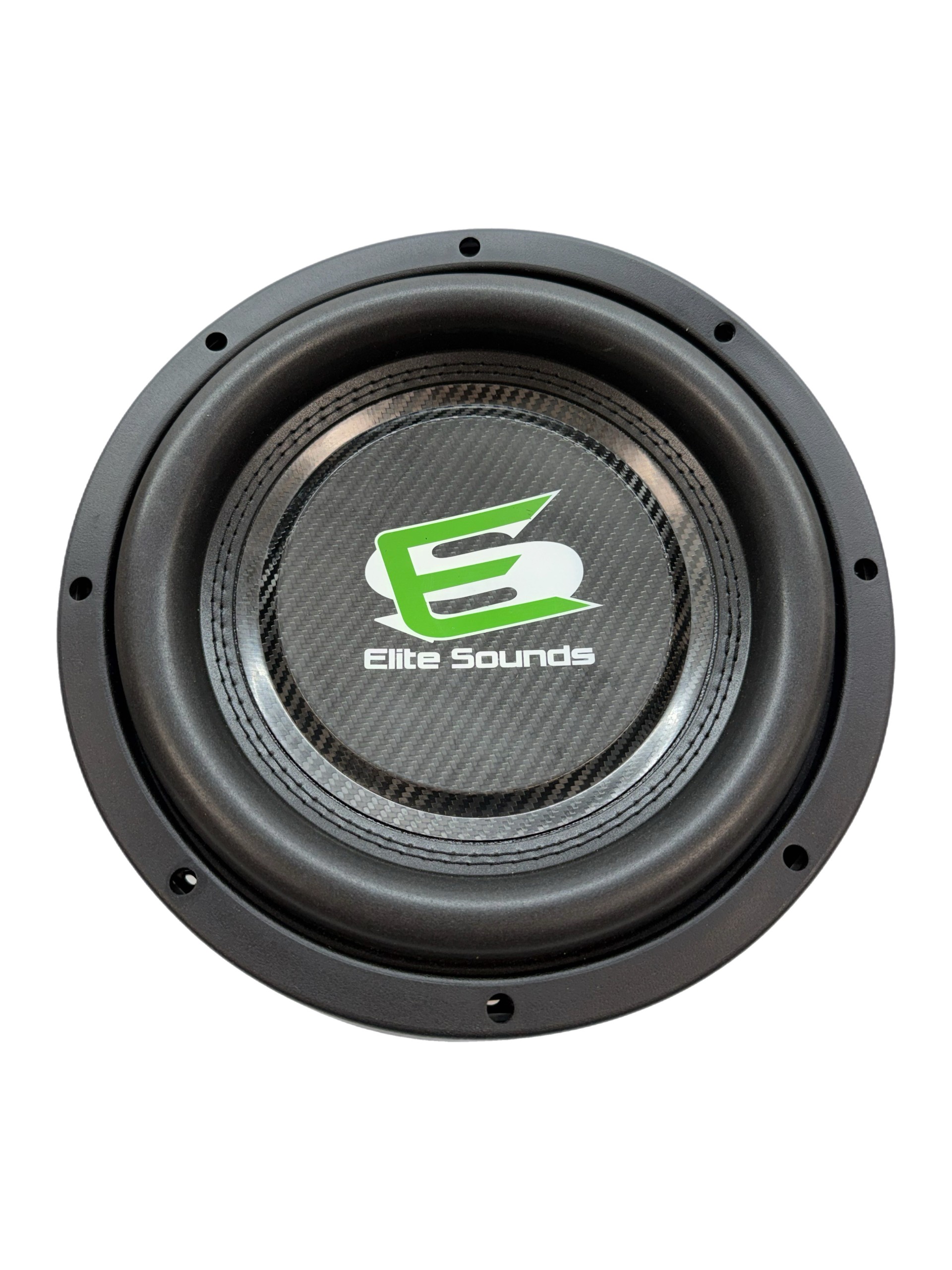

Limitless Lithium ES1250-3W-10D4

The 10″ Pro-Series Bagger Subwoofer is the “sweet spot” for high-end motorcycle audio. It offers the perfect balance between massive air displacement and mounting practicality. While a 12″ sub requires significant bag modification, this 10″ driver fits perfectly into standard bags using Nagy’s Monster Rings, providing the chest-thumping low-end extension that 6x9s simply cannot replicate.

With Dual 4-Ohm Voice Coils, this woofer is designed for versatile wiring. You can run a single sub at 2-Ohms to pull maximum power from a standard amplifier channel, or wire a pair of them to a 1-Ohm load for a dedicated monoblock setup.

Detailed Technical Specifications

1. High-Performance Motor & Coil

• Power Handling: 625 Watts RMS | 1250 Watts PEAK.

• Voice Coil: 2.5″ (63.5mm) High-Temp 4-Layer Copper Voice Coil on a Kapton® Former for extreme heat dissipation.

• Magnet Assembly: High-Energy Y30 Strontium Ferrite Magnet with an oversized back-plate to allow for deep excursion.

• Impedance: Dual 4-Ohm (Configurable to 2-Ohm or 8-Ohm).

2. All-Weather Acoustic Engineering

• Cone Material: Carbon-Fiber Infused Paper Cone with a proprietary weather-shield coating to resist moisture and humidity.

• Surround: Multi-Roll High-Excursion ($X_{max}$) Rubber Surround, double-stitched to the cone for maximum structural integrity.

• Spider: Dual-Layer Nomex® Spider system to maintain perfect voice coil alignment even at high volumes.

• Chassis: Non-Resonant Die-Cast Aluminum Basket with a textured “Crinkle Black” finish.

3. Critical Tuning Parameters

• Sensitivity: 87.8 dB (1W/1m).

• Frequency Response: 32Hz – 500Hz.

• Mounting Depth: 5.85″ (148.5mm).

• Cutout Diameter: 9.25″ (235mm).
