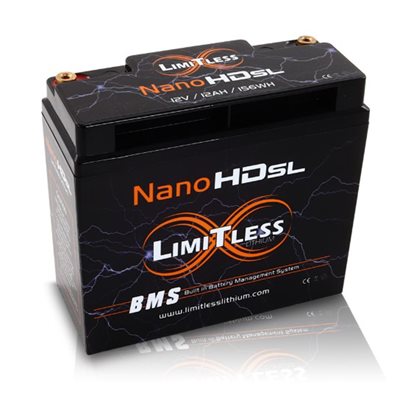

Limitless Lithium NSL-12AH
MSRP: Log in to view prices
Log in to see Dealer Price
Nano Slim 12AH Motorcycle / Powersports Battery
Description
- Resting Voltage (Charge Voltage Dependent): 13.1V-13.4V (Temp. and S.O.C dependent)
- Float/Maintenance Charging Voltage: 14.2V
- Max Charging Voltage: 14.8V
- Minimum Charging Voltage: 13.6V
- Capacity (Ah): 12
- Capacity (Pb Eq): 48
- Cell Chemistry: LifePo4
- Cell Life Cycles: 2,000 (80% DOD)
- Craking Amps (CA): 1,000
- Cold Craking Amps (CCA): 750
- Nominal Operating Temperature Range: Up to 140F
- Terminal Bolt Size: M6-100
- Terminal Orientation: Positive Left
- Balance Board Installed: Yes

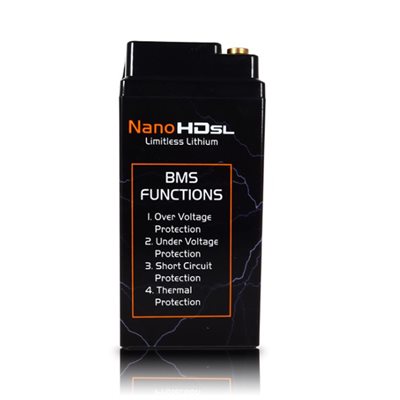

- Battery Management System Installed (BMS): Yes
- RMS Wattage (Alternator size dependent): 2,500W-3,000W (14.8V Input Voltage)
- Max Burst Wattage (Alternator size dependent): 3,500W (14.8V Input Voltage)
- RMS Amperage Output (Stand alone for 30 seconds): 200 (starting at 14.8V
- Max Burst Amperage Output (Stand alone for 10 seconds): 250 (Starting at 14.8V)
- Recommended Charging/Input Current: 75A
- Maximum Charging/Input Current: 100A (charging above 300A shortens the cycle life)
- Warranty: Each battery comes with a 3-year manufacture defect full replacement warranty.
Dimensions
- Overall Length: 7”
- Overall Width: 3”
- Overall Height: 6.5”
- Overall Height (without terminals): 6.5”
- Weight: 4.11 lbs.
- BCI Battery Group Model: 20
