Rockford P2V2-69
MSRP: Log in to view prices
Log in to see Dealer Price
6×9″ 2-way convertible with internal/external crossover 75 watts RMS, 150 watts peak

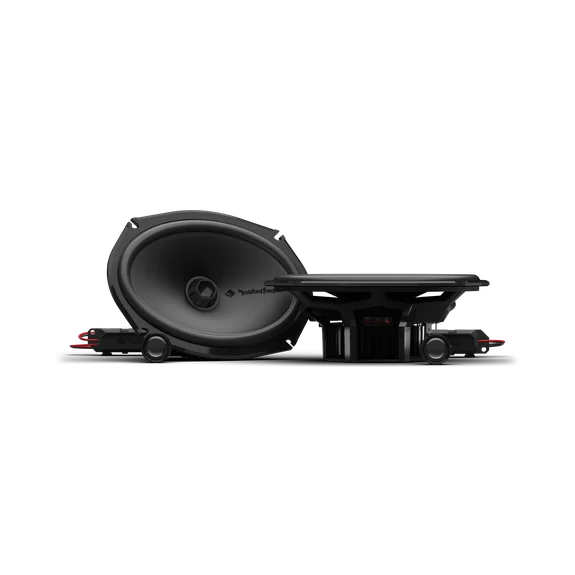

Rockford Fosgate Punch P2 P2V2-69
Auto Fit Architecture
Everything was engineered to fit. A re-designed frame, removable motor cover, mounting holes, and speaker diameter were all engineered to ensure seamless integration into today’s modern vehicles. The factory location mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility
The Multi-Configuration Crossover Chassis (M.C.3) breaks down into separate units, giving you total freedom to route and wire your setup your way. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Performance Driven
Powered by advanced VAST 2.0™ technology, the PUNCH series delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass. The inverted dome tweeter ensures a precise high-frequency range, so every note comes through with clarity and accuracy. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.
Built to Last
Every component. Every material. Chosen for strength. Built for the long haul. From reinforced polymer baskets to Santoprene™ surrounds and Nomex® spiders, every part of the PUNCH speaker is engineered to be a workhorse. No matter how hard you drive them, the class-leading construction delivers relentless performance that lasts.
Product Details:
- 6″ x 9″ Punch P2 Series 2-way Component System
- Power Handling:
- Peak: 300 watts per set / 150 watts each side
- RMS: 150 watts per set / 75 watts each side
- CEA-2031 compliant: Yes
- 20-40% Mica reinforced Polypropylene cone material
- Curvilinear cone for enhanced rigidity and sonic quality
- Santoprene Rubber half-roll speaker surround
- Co-molded surround and cone body chemically bonded for high durability
- 3/4″ Tetolon Inverted Dome Tweeters
- Flush-mount threaded tweeter cup fits 3/8″ thick panels using 1.5″ hole-saw cutout
- Surface/flush tweeter cups use copper spring contacts for front-side servicing (tool included)
- 1.25″ Vented Kapton® voice coil former for excellent heat dissipation
- Overhung voice coil ensures consistent magnetic flux for less speaker distortion
- High strength Y35 Ferrite magnet motor structure (5mm larger over previous generation)

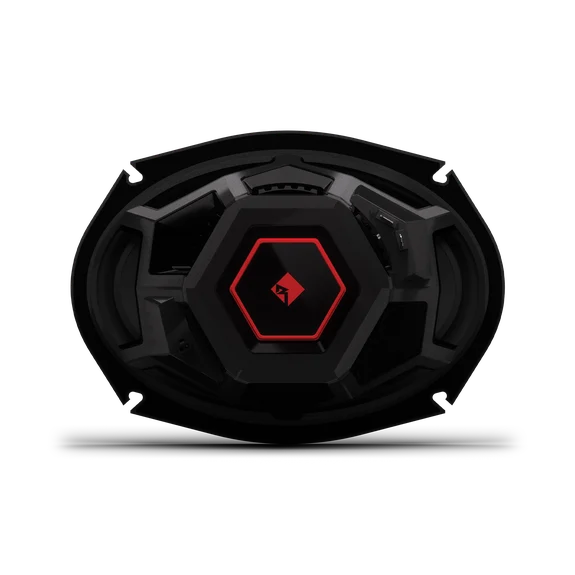

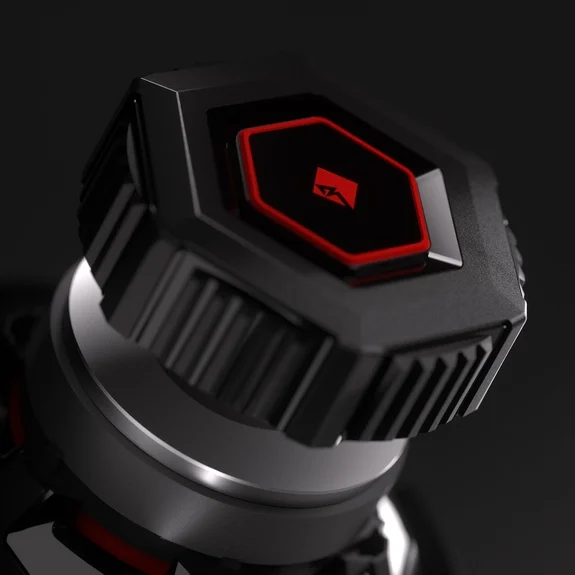

- Removable motor cover for fitment in tight applications
- I.L.M. (Interchangeable Locking Mechanism) for configuration as a coaxial or component system
- Updated mounting flanges for direct fitment in new vehicles
- Upgradable to a 3-way component by adding the Rockford Fosgate P3V2-25 midrange speaker (sold separately)
- 15% glass-fiber reinforced PA66 injected molded composite basket
- Fatigue and tear resistant linear Nomex® spider
- Ultra-flexible braded tinsel leads securely stitched to spider
- Includes woofer phase plug when tweeter relocated to separate tweeter cup
- ICC+ (internal concealed crossover) 6dB with 12dB external option and -3dB tweeter attenuation
- 2-pin micro-Molex crossover connection secured via screws or zip ties
- Co-molded basket terminals for secure connectivity
- Includes mounting hardware and cut-out template
- Top-mount Depth: 3.13″
- Cutout Dimensions: 8.41 x 5.71
- Impedance: 4 ohm
- Frequency Response: 45 – 25000 Hz
- Sensitivity: 90 dB
- Protective speaker grilles: GS-69 (sold separately)
