VIPER 5908V

The Viper 5908V is a flagship 2-way full-color LCD security and remote start system engineered to provide real-time graphical status confirmation, active vehicle protection, and high-performance long-range command control.

Overview

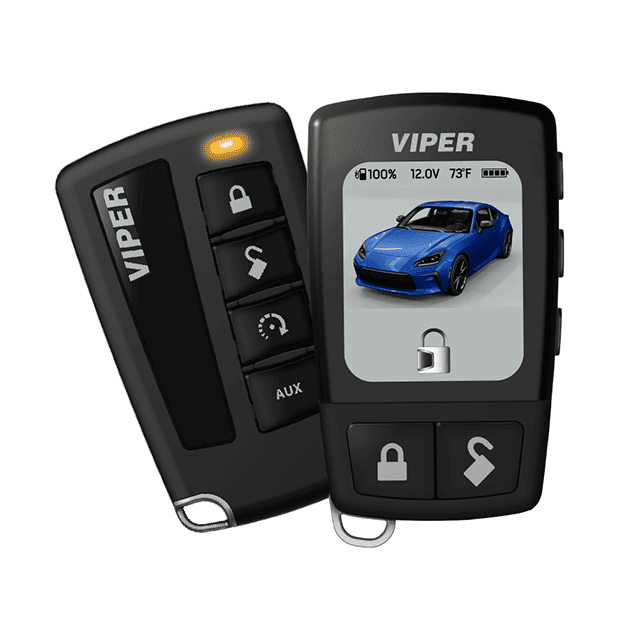

The Viper 5908V serves as the top-tier flagship unit in Directed Electronics’ (VOXX) security and remote start catalog. At the core of the system is a 2-way rechargeable color LCD main transmitter that displays high-resolution vehicle status animations, interior cabin temperature readouts, real-time security zone alert notifications, and interactive programming menus.

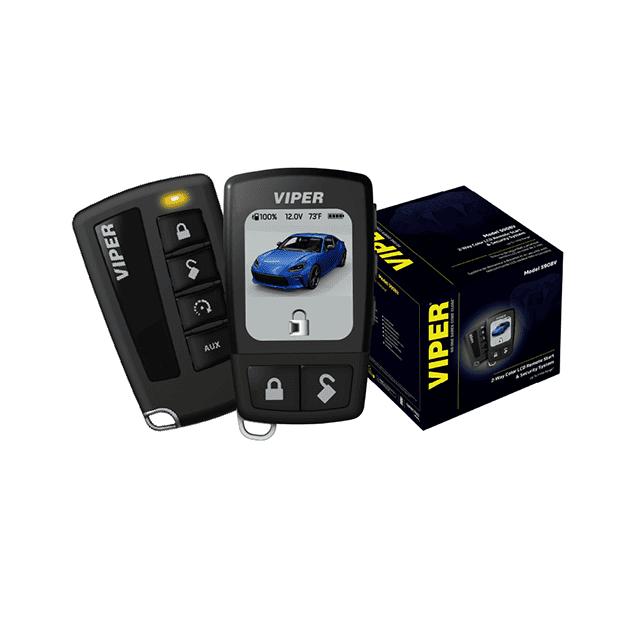

Delivering operational range up to 1 mile (approx. 5,280 feet / 1.6 km), the system integrates an onboard Stinger® DoubleGuard® dual-stage shock sensor, Failsafe® starter interrupt, Revenger® 6-tone siren, Real Panic Sound (RPS) horn honk integration, and full keyless entry capabilities. The kit includes one 2-way rechargeable color LCD transmitter and one 1-way 5-button companion remote.

Key Features

• Full-Color LCD Command Confirmation: Vibrant animated display shows door/hood/trunk trigger status, engine run-time countdown, interior cabin temperature, remote battery status, and active sensor bypasses.

• Rechargeable Battery via Micro-USB/USB-C: Eliminates coin-cell replacements on the primary LCD remote via an integrated USB charging port.

• Extreme 1-Mile Range: Extended-range transceiver architecture provides reliable command execution and instant 2-way alerts through wall structures and long distances.

• Stinger® DoubleGuard® Impact Sensor: Onboard dual-stage shock sensor triggers Warn-Away chirps for minor impacts and a full alarm response for severe impacts.

• Failsafe® Starter Interrupt: Integrated starter isolation relay disables the vehicle starter circuit when armed to protect against hot-wiring attempts.

• Real Panic Sound (RPS) & Light Flash: Combines the high-decibel Revenger® 6-tone siren with direct horn honk pulse outputs and parking light flashing for vehicle location and panic deterrence.

• SmartStart Pro & D2D Port Architecture: Features dedicated serial ports for direct plug-and-play integration with Directed digital bypass modules (DB3) and Viper SmartStart cellular telematics modules (VSM550).

Technical Specifications

Harness Pinout & Integration

Heavy-Gauge Remote Start Relay Harness (10-Pin Port)

1. NC: No Connection

2. Red/Black: (+) Fused 12V Accessory / Starter Input

3. Pink/Black: (+) Flex Relay Input 87a (Key side of Flex Relay)

4. Pink/White: (+) Ignition 2 / Flex Relay Output

5. Red: (+) Fused 12V Ignition 1 Input

6. Green: (+) Starter Input (Key side of starter interrupt)

7. Violet: (+) Starter Output (Car side of starter interrupt)

8. Orange: (+) Accessory Output

9. Red/White: (+) Fused 12V Ignition 2 / Flex Relay Input 87

10. Pink: (+) Ignition 1 Input / Output

Main System Harness (6-Pin Port)

1. Red: (+) 12VDC Constant Input

2. Black: (-) Chassis Ground Input

3. Brown: (+) Siren Output

4. White/Brown: Parking Light Isolation Wire (Pin 87a of onboard relay)

5. White: Selectable (+/-) Parking Light Flash Output

6. Orange: (-) 500 mA Ground-When-Armed Output

Door Lock Harness (3-Pin Port)

1. Blue: (-) 500 mA Unlock Output

2. Empty: Not Used

3. Green: (-) 500 mA Lock Output

Auxiliary / Trigger / Control Harness (24-Pin Port)

• Pin 1 (Pink/White): (-) 200 mA Ignition 2 / Flex Output

• Pin 2 (Blue/White): (-) 200 mA 2nd Status / Rear Defogger Output

• Pin 3 (Red/White): (-) 200 mA Trunk Release Output (Channel 2)

• Pin 4 (Black/Yellow): (-) 200 mA Dome Light Supervision Output

• Pin 5 (Dark Blue): (-) 200 mA Status Output (GWR / Bypass Activation)

• Pin 6 (White/Black): (-) 200 mA AUX 3 Output

• Pin 7 (White/Violet): (-) 200 mA AUX 1 Output

• Pin 8 (Orange/Black): (-) 200 mA AUX 4 Output

• Pin 9 (Gray): (-) Hood Pin Trigger Input

• Pin 10 (Blue): (-) Trunk Pin / Instant Trigger Input

• Pin 11 (White/Blue): (-) Remote Start Activation Input

• Pin 12 (Violet/White): Tachometer Input Wire

• Pin 13 (Black/White): (-) Neutral Safety / Parking Brake Switch Input

• Pin 14 (Green/Black): (-) 200 mA Factory Alarm Disarm Output

• Pin 15 (Green): (-) Door Trigger Input

• Pin 16 (Brown/Black): (-) 200 mA Horn Honk Output

• Pin 17 (Pink): (-) 200 mA Ignition 1 Output

• Pin 18 (Violet): (+) Door Trigger Input

• Pin 19 (Violet/Black): (-) 200 mA AUX 2 Output

• Pin 20 (Brown): (+) Brake Shutdown Switch Input

• Pin 21 (Violet/Yellow): (-) 200 mA Starter Output

• Pin 22 (Gray/Black): (-) Diesel Wait-To-Start Input

• Pin 23 (Orange): (-) 200 mA Accessory Output

• Pin 24 (Green/White): (-) 200 mA Factory Alarm Rearm Output
